FA7601

The FA7601 is a small, ultra-low RON, dual-channel load switch supporting a maximum continuous current of 6A per channel. Each switch is independently controlled by an on/off input (ON1 and ON2), which is capable of interfacing directly with low-voltage control signals.
In FA7601, a 220Ω on-chip load resistor is added for quick output discharge when the switch is turned off.

Features

  • 20mΩ On-resistance per Channel
  • 6A Continuous Current
  • Soft start time programmable by External capacitor
  • Wide Input Voltage Range (VIN): 0.8V to VBIAS
  • Supply Voltage Range (VBIAS): 2.5V to 5.5V
  • Output Discharge when Switch Disabled
  • Reverse Current Blocking when Switch Disabled
  • Enable control

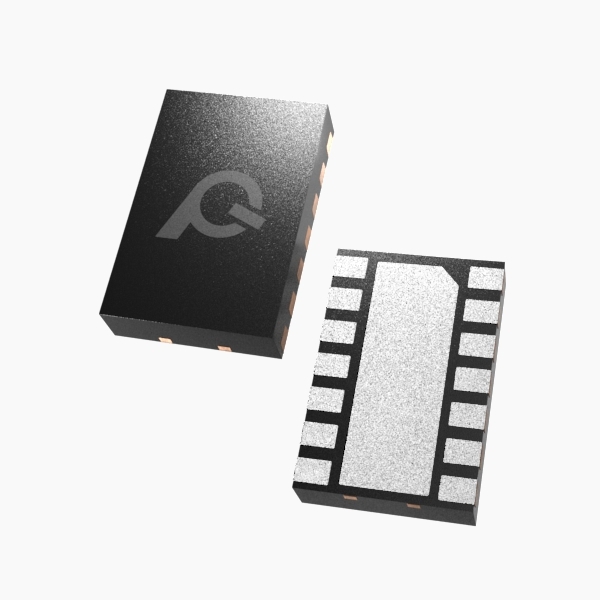

  • DFN 2x3mm²-14L Package
  • Halogen Free and Green Devices (RoHS Compliant)

Specifications

Part No. Vin_min (V) Vin_max (V) VBIAS Range (V) Configuration Loading (A) Rdson (mΩ) Output Discharge Soft Start Timing
FA7601
0.8 VBIAS 2.5~5.5 Dual 6 / 6 20 / 20 220Ω Adjustable
