FA7660

The FA7660 is a product with high voltage power switch for USB PD application. The high voltage power switch has 60V DC tolerance, and is able to drive up to 3A continuous current. The power path supports UVLO, OVP, RCP, OCP and OTP features. The FA7660 supports a FAULT pin that indicates fault events.
The FA7660 integrated reverse blocking function regardless of EN logic states.

Features

  • 3.0V to 60V Wide Operating Voltage Range
  • 120mΩ(typical) Low ON Resistance
  • True Reverse Blocking (TRB) when Switch OFF
  • Reverse Current Protection (RCP) when Switch ON
  • 0.5A to 3A Adjustable Over Current Threshold
  • Adjustable Over Voltage Protection
  • Over Temperature Protection
  • Built in Slew Rate Control for Inrush Current Limit

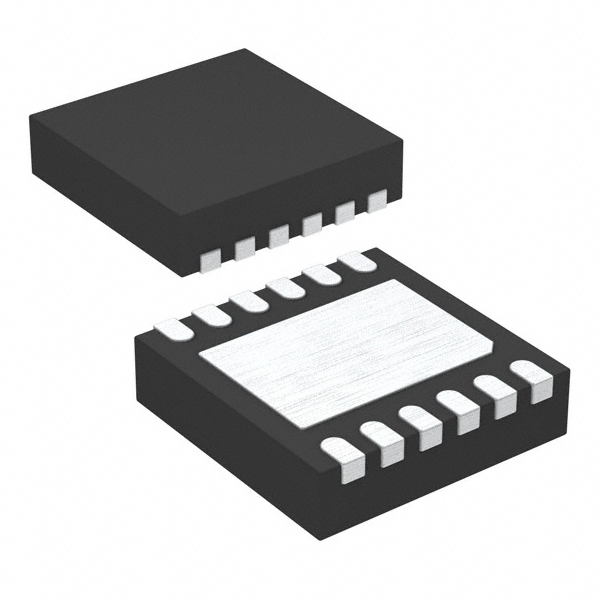

  • DFN 3x3mm²-12L Package
  • Halogen Free, RoHS and TSCA Regulations Compliant
  • IEC61000-4-5 exceeds ±65V on VIN and VOUT
  • IEC61000-4-2 contact discharge exceeds 8kV on VIN
添加詢價

Specifications

Part No. Vin_min (V) Vin_max (V) Configuration Loading (A) Rdson (mΩ) Output Discharge Adjustable Soft Start Timing Current Limit True Reverse Blocking (TRB) Reverse Current Protection (RCP) VIN/VOUT Breakdown OVP OTP FRS Function
FA7660 		3.0 60 Single 3 120 N/A N/A ◎ ◎ ◎ 63V ◎ ◎ ╳
