FA7632

The FA7632 is an e-fuse controller for 5V to 20V system. The programmable current limit protects the power source from over-current or short-circuits conditions. The device is controlled by an on/off input, which is capable of interfacing directly with low-voltage control signals. In FA7632, an option 2kΩ on-chip load resistor is added for output discharge when the switch is turned off.
Other features include a power-OK (POK) output that signals when the output voltage is ready.
With an appropriate external MOSFET, FA7632 can support 20V@15A applications up to 300 Watts.

Features

  • Wide Supply Voltage Range for VIN from 4.5V to 24V
  • Adjustable Over Current Threshold
  • Adjustable Input Over Voltage Threshold
  • Optional Output Discharge when Disabled
  • Power-OK Output to Control Next Stage Switch

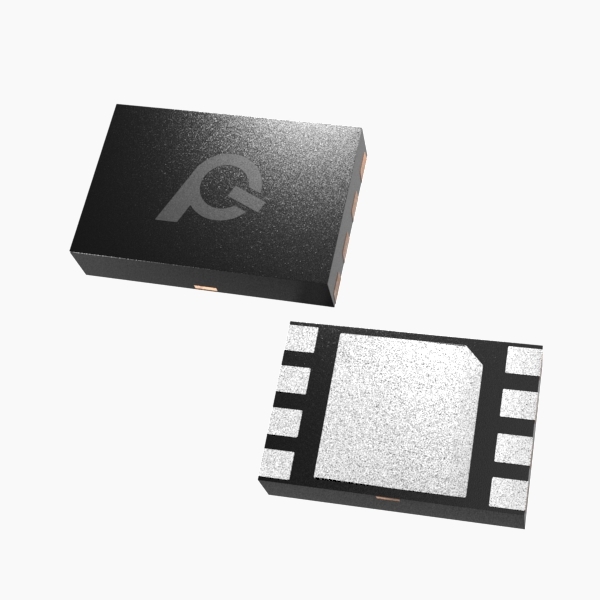

  • DFN 2x3mm²-8L Package
  • Halogen Free and Green Devices (RoHS Compliant)

Specifications

Part No. Vin_min (V) Vin_max (V) Configuration Loading (A) Rdson (mΩ) Output Discharge Adjustable Soft Start Timing Current Limit Reverse Voltage Blocking VIN/VOUT Breakdown OVP OTP
FA7632
4.5 24 Single 10 N/A Option N/A 26V
