FA2207

The FA2207 is a single-chip USB Type-C port protection device that provides 20V Short-to-VBUS protection. The FA2207 enables the CC and SBU pins to be 20V tolerant without interfering with normal operation by providing over-voltage protection on the CC and SBU pins. The device places high voltage FETs in series on the CC and SBU lines. When a voltage above the OVP threshold is detected on these lines, the high voltage switches are opened up, isolating the rest of the system from the high voltage condition present on the connector.

Features

  • 4-Channels of Short-to-VBUS Overvoltage Protection (C_CC1, C_CC2, C_SBU1, C_SBU2)
  • 600mA Capable for Passing VCONN Power
  • CC Dead Battery Resistors Integrated for Handling Dead Battery Use Case

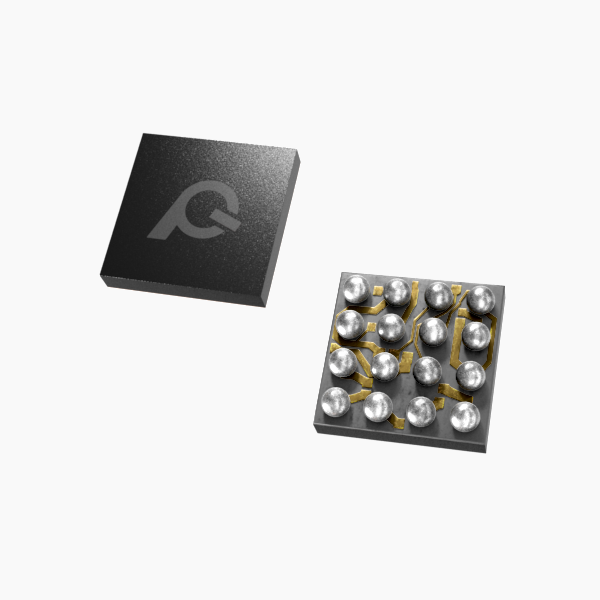

  • WLCSP 1.67x1.67mm²-16L Package
  • Halogen Free, RoHS and TSCA regulations compliant

Specifications

Part No. VPWR (V) VC_CCx/VCCx (V) VDx (V) VC_SBUx/VSBUx (V) VPWR/VCCx/VSBUx Breakdown (V) VDx Breakdown (V) VBIAS Breakdown (V) VC_CCx/VC_SBUx Breakdown (V) OTP OVP IEC 61000-4-2 ESD Protection Channels
FA2207
3.0~5.5 0~5.5 N/A 0~4.3 6 N/A 30 30 C_CC1, C_CC2, C_SBU1, C_SBU2 N/A
